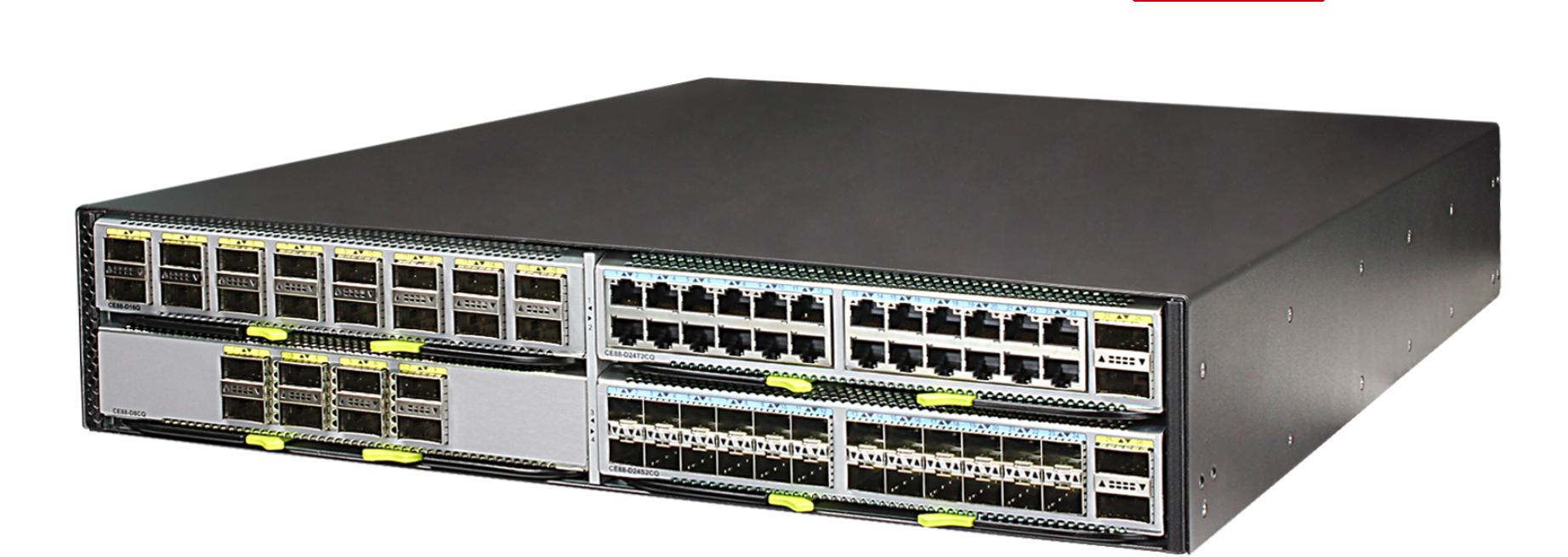

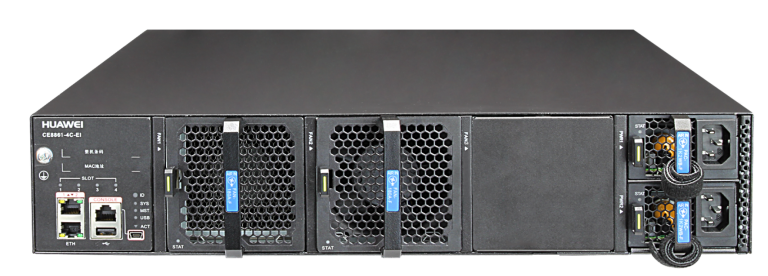

Huawei CE8861-4C-EI-B Switch With 4 Subcard Slots, 2*AC Power Module, 2*FAN Box, Port-side Intake
Product Overview
Huawei CloudEngine 8800 (CE8800) series switches are 100G Ethernet switches designed for datacenters and high-end campus networks. The switches provide high-performance, high-density100GE/40GE/25GE/10GE ports, and low latency. Using the Huawei VRP8 software platform, CE8800series switches provide extensive data center service features and high stacking capability.
In addition, theairflow direction (front-to-back or back-to-front) can be changed. CE8800 series switches can work withCE12800/CE8800/CE6800/CE5800 switches to build an elastic, virtualized, high-quality fabric that meetsthe requirements of cloud-computing data centers.
CE8800 series switches can function as core or aggregation switches on data center networks to helpenterprises and carriers build a scalable data center network platform in the cloud computing era. Theycan also be used as aggregation or core switches for enterprise campus networks.
| Item | CE8860-4C-EI | CE8850-32CQ-EI | CE8850-64CQ-EI | CE8861-4C-EI |
| Maximum number of MAC address entries | 136K | 136K | 264K | 288K |
| Maximum number of | IPV4 192K | IPV4 192K | IPV4 360K | IPV4 380K |
| Forwarding routes (FIB | IPV6 128K | IPV6 128K | IPV6 256K | IPV6 256K |
| IPv4/ IPv6) ARP table size | 84K | 84K | 156K | 168K |
| Maximum number of VRF | 1024 | 1024 | 2048 | 4096 |
| IPv6 ND (Neighbour | 32K | 32K | 48K | 64K |
| Discovery) table size | ||||
| Maximum Number of multicast routes | 8K | 8K | 8K | 8K |
| (Multicast FIB IPv4/ | ||||
| IPv6) | ||||
| Maximum VRRP groups | 256 | 256 | 1000 | 1000 |
| Maximum number of | 128 | 128 | 128 | 128 |
| ECMP paths | ||||
| Maximum ACL number | Ingress 2750 egress 1000 | Ingress 2750 egress 1000 | Ingress 2750 egress 1000 | Ingress 7662 egress 2000 |
| Maximum Number of broadcast domains | 8K | 8K | 8K | 16K |
| Maximum number of | 4K | 4K | 4K | 12K |
| BDIF | ||||
| Maximum number | 2K | 2K | 2K | 2K |
| of tunnel endpoints | ||||
| (VTEP) | ||||
| Maximum number of lag group | 1024/512/ | 1024/512/ | 1024/512/ | 1024/512/ |
| 256/128/64 | 256/128/64 | 256/128/64 | 256/128/64 | |
| Maximum number of | 2/4/8/16/32 | 2/4/8/16/32 | 2/4/8/16/32 | 2/4/8/16/32 |
| links in a lag group | ||||
| Maximum number of | 64 | 64 | 64 | 64 |
| MSTP instance | ||||
| VBST | 500 | 500 | 500 | 500 |
| (Maximum number of VLANs where VBST can be configured) | ||||
| Dimensions | 442*600*88.1 | 442*420*43.6 | 442*600*88.1 | 442*600*88.1 |
