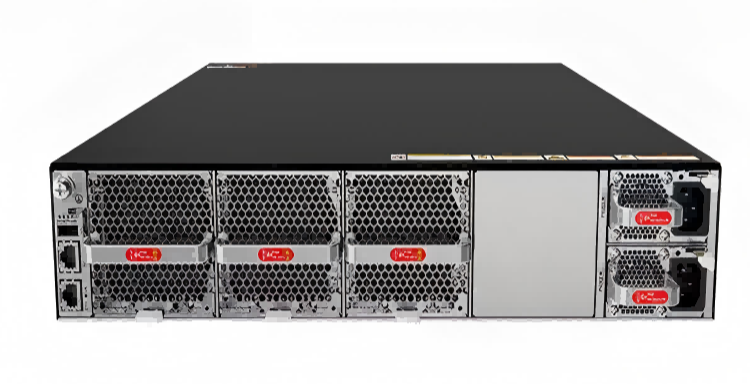

CE8865-4C Mainframe (With 4 Subcard Slots, Without Fan and Power Modules)
Product Overview
Hua wei CloudEngine 8865 series switches are next-generation switches that support flexible cards ranging from GE to 400GE and are designed for data centers (DCs).
CloudEngine 8865-4C series are Hua wei's next-generation Ethernet switches designed for DCs. They feature high performance, high density, low latency, and flexible cards. They are built on an advanced hardware structure and provide high-density 400GE, 100GE, and 25GE ports. Running over the Hua wei YunShan software platform, they support abundant DC features. In addition, they can work with CloudEngine 16800/8800/6800/5800 switches to build an elastic, virtual, and high-quality data center network (DCN), meeting networking requirements of DCs in the cloud computing era. CloudEngine 8865-4C series switches can function as core or aggregation switches on DCNs to help enterprises and carriers to build a DCN platform for the cloud computing era. They can also be used as aggregation or core switches on campus networks.
| Parameters | CloudEngine 8865-4C |
| Ports | Supports four half-width flexible cards and flexible combination of five types of cards • 4 x 400GE + 8 x 25GE • 24 x 10GE (electrical) + 2 x 100GE • 24 x 25GE + 2 x 100GE • 16 x 100GE • 10 x 100GE |
| Switching Capacity | 16Tbps |
| Forwarding Performance | 4800Mpps |
| Buffer | 64MB |
| Reliability | LACP BFD for BGP, IS-IS, OSPF, static route, and VXLAN Hardware-based BFD DPFR MoFRR |
| O&M | Telemetry Netstream ERSPAN+ IFIT Packet Event |
| Data Center Features | 1588v2 MACsec VXLAN routing and bridging BGP-EVPN M-LAG PFC、AI ECN |
| Maximum Power Consumption | CE8865-4C (configured with four CE88-D16CQ-H cards): • 650W (100% load, 32 x 100G copper cables, room temperature, dual AC power supplies) • 728W (100% load, 32*100G port short-distance optical module, normal temperature, dual AC power supplies) CE8865-4C (configured with four CE88-D10CQ-H cards): • 315W (100% load, 20 x 100G copper cables, normal temperature, dual AC power supplies) • 338W (100% load, 20 x 200G copper cables, room temperature, dual AC power supplies) • 345W (100% load, 20*100G port short-distance optical module, normal temperature, dual AC power supplies) • 420W (100% load, 20*200G short-distance optical modules, room temperature, dual AC power supplies) CE8865-4C (configured with four CE88-D8YS4DQ-H cards): • 306W (100% load, 8*400G+16*25G copper cables, room temperature, dual AC power supplies) • 406W (100% load, 8*400G+16*25G short-distance optical modules, normal temperature, dual AC power supplies) CE8865-4C (configured with four CE88-D24YS2CQ-H cards): • 305W (100% load, 48*25G+4*100G copper cables, room temperature, dual AC power supplies) • 338W (100% load, 48*25G+4*100G short-distance optical modules, normal temperature, dual AC power supplies) CE8865-4C (configured with four CE88-D24T2CQ-H cards): • 381W (100% load, 48*10G electrical ports + 4*100G copper cables, room temperature, dual AC power supplies) • 388W (100% load, 48*10G electrical modules+4*100G short-distance optical modules, normal temperature, dual AC power supplies) |
| Power Supply | 2000W AC&240V DC 1800W AC&240V DC 2200W DC 2000W HVDC |
| Operating Voltage | 600 W AC and 240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC 1200 W DC power module: –38.4 V DC to –72 V DC; 40 V DC to 57 V DC |
| Item | CE8860-4C-EI | CE8850-32CQ-EI | CE8850-64CQ-EI | CE8861-4C-EI |
| Maximum number of MAC address entries | 136K | 136K | 264K | 288K |
| Maximum number of | IPV4 192K | IPV4 192K | IPV4 360K | IPV4 380K |
| Forwarding routes (FIB | IPV6 128K | IPV6 128K | IPV6 256K | IPV6 256K |
| IPv4/ IPv6) ARP table size | 84K | 84K | 156K | 168K |
| Maximum number of VRF | 1024 | 1024 | 2048 | 4096 |
| IPv6 ND (Neighbour | 32K | 32K | 48K | 64K |
| Discovery) table size | ||||
| Maximum Number of multicast routes | 8K | 8K | 8K | 8K |
| (Multicast FIB IPv4/ | ||||
| IPv6) | ||||
| Maximum VRRP groups | 256 | 256 | 1000 | 1000 |
| Maximum number of | 128 | 128 | 128 | 128 |
| ECMP paths | ||||
| Maximum ACL number | Ingress 2750 egress 1000 | Ingress 2750 egress 1000 | Ingress 2750 egress 1000 | Ingress 7662 egress 2000 |
| Maximum Number of broadcast domains | 8K | 8K | 8K | 16K |
| Maximum number of | 4K | 4K | 4K | 12K |
| BDIF | ||||
| Maximum number | 2K | 2K | 2K | 2K |
| of tunnel endpoints | ||||
| (VTEP) | ||||
| Maximum number of lag group | 1024/512/ | 1024/512/ | 1024/512/ | 1024/512/ |
| 256/128/64 | 256/128/64 | 256/128/64 | 256/128/64 | |
| Maximum number of | 2/4/8/16/32 | 2/4/8/16/32 | 2/4/8/16/32 | 2/4/8/16/32 |
| links in a lag group | ||||
| Maximum number of | 64 | 64 | 64 | 64 |
| MSTP instance | ||||
| VBST | 500 | 500 | 500 | 500 |
| (Maximum number of VLANs where VBST can be configured) | ||||
| Dimensions | 442*600*88.1 | 442*420*43.6 | 442*600*88.1 | 442*600*88.1 |
