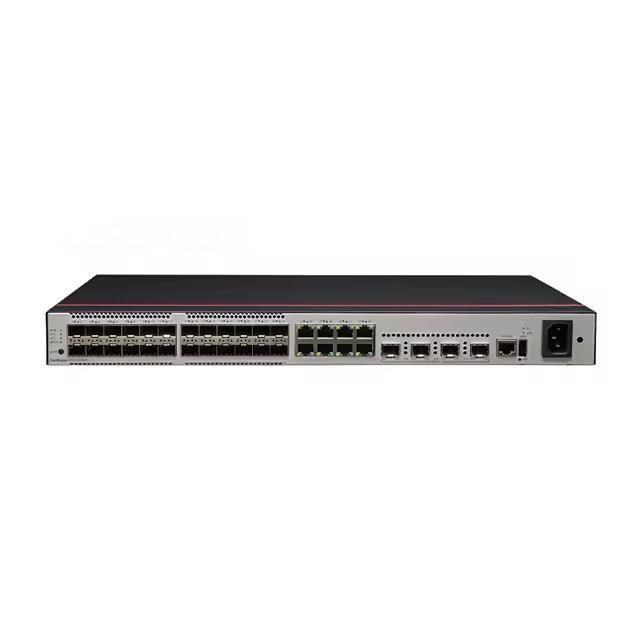

Huawei S5735-L32ST4X-A1 98011396

Description

Huawei S5735-L32ST4X-A1 (24*GE SFP ports, 8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power, front access)

Detailed description

CloudEngine S5735-L series switches are ideal for scenarios such as enterprise campus network access and gigabit to thedesktop. Built on next-generation, high-performance hardware and the Huawei Versaile Routing Platform (VRP), CloudEnoS5735-L switches stand out with compelling features such as intelligent stack (iStack), flexible Ethernet networking, anddiversified security control. They support multiple Layer 3 routing protocols and provide high performance and serviceprocessing capabilities.

Item	Details
Description	S5735-L32ST4X-A1 (24GE SFP ports, 810/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power, front access)
Part Number	98011396
Model	S5735-L32ST4X-A1
First supported version	V200R020C10
Port	Twenty-four 100/1000BASE-X ports,Eight 10/100/1000BASE-T ports Four 10GE SFP+ ports,One console port,One USB port
Power Module	AC built-in
PoE+	Not supported
Typical power consumption	53.2 W
Maximum power consumption [W]	66.8 W
Maximum heat dissipation [BTU/hour]	227.93 BTU/hour
Static power consumption [W]	39.3 W
Memory	512 MB
Flash memory	512 MB
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Dimensions without packaging (H x W x D)	90.0 mm x 550.0 mm x 360.0 mm
Dimensions with packaging (H x W x D)	90.0 mm x 550.0 mm x 360.0 mm
Chassis height [U]	1 U
Weight without packaging	2.88 kg
Weight with packaging	4.03 kg




VLAN Features	4094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping





IP Routing	Static route, RIP, RIPng, OSPF, OSPFv3


MAC Features	MAC address auto-learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC address learning limiting
