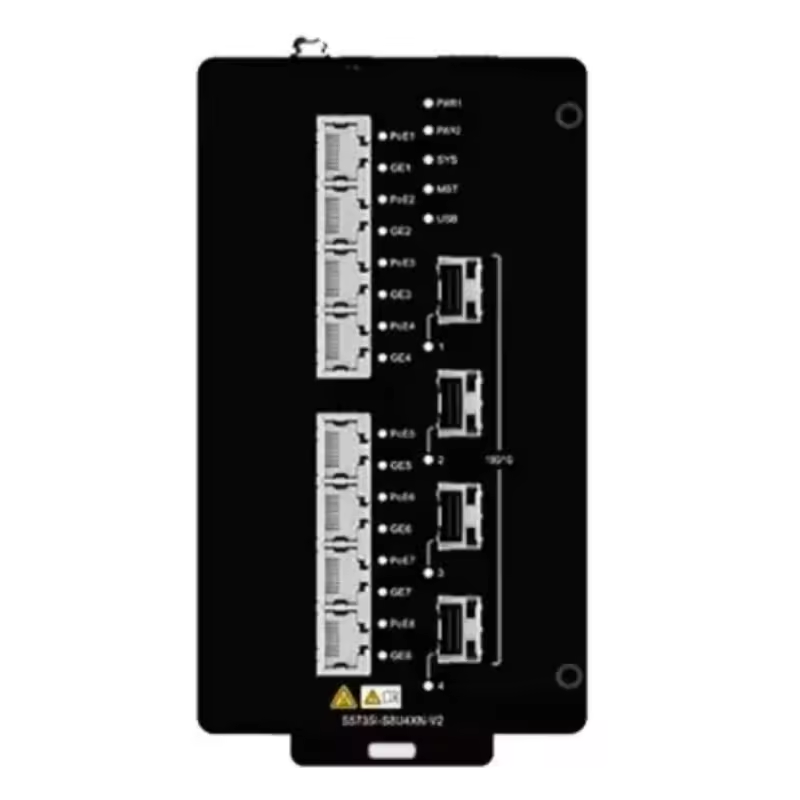

S5735I-S8U4XN-V2 (8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE++, DIN Rail Mounting, Dual redundant 54 to 57V DC power, Fanless)
Huawei CloudEngine S5735I-S-V2 series industry switches (S5735I-S-V2 for short) are next-generation standard Layer 3 gigabit switches that provide flexible all-gigabit access and GE/10GE uplink ports. Industry switches have an industrial-grade operating temperature range as well as professional outdoor surge protection to withstand harsh outdoor environments. As such, they can be widely used in access scenarios such as Safe City and Ethernet to the x (ETTx)
Technical Specification:
| Item | Details |
| Description | S5735I-S8U4XN-V2 (8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE++, DIN Rail Mounting, Dual redundant 54 to 57V DC power, Fanless) |
| Part Number | 98012066 |
| Model | S5735I-S8U4XN-V2 |
| First supported version | V600R022C01 |
| Port | 8 x 10/100/1000Base-T Ethernet ports, 4 x 10GE SFP+ ports, 1 x DI/DO, 1 x RS485 |
| Power Module | 240W AC (AC PoE power adapter) or DC externa |
| Forwarding performance | 72 Mpps |
| Switching capacity | 96Gbps /520 Gbps |
| PoE | PoE+ |
| CPU | 1.1 GHz |
| Memory (RAM) | 2 GB |
| Flash memory | 1 GB in total. To view the available flash memory size, run the displa |
| Storage temperature | -40°C to +85°C |
| Maximum power consumption of the device | 21.7 W (without PD) 421.7 W (with PD, PD power consumption of 400 W)* |
| Typical power consumption | 20.45 W |
| Dimensions without packaging | 150 mm x 60 mm x 133 mm |
| Weight: | 1.47 kg |
| Service Features | |
| MAC address table | • IEEE 802.1d compliance • 32K MAC entries • MAC address learning and aging • Static, dynamic, and blackhole MAC address entries • Packet filtering based on source MAC addresses |
| VLAN | • 4K VLANs simultaneously • 1K VLANif interface simultaneously • Sub-VLAN, Super-VLAN, Mux VLAN, Voice VLAN • QinQ and enhanced selective QinQ • VLAN Stacking, VLAN Mapping • LNP, VCMP, GVRP |
| IP routing | • Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, and VRRP6 • Up to 8192 FIBv4 entries • Up to 3072 FIBv6 entries |
