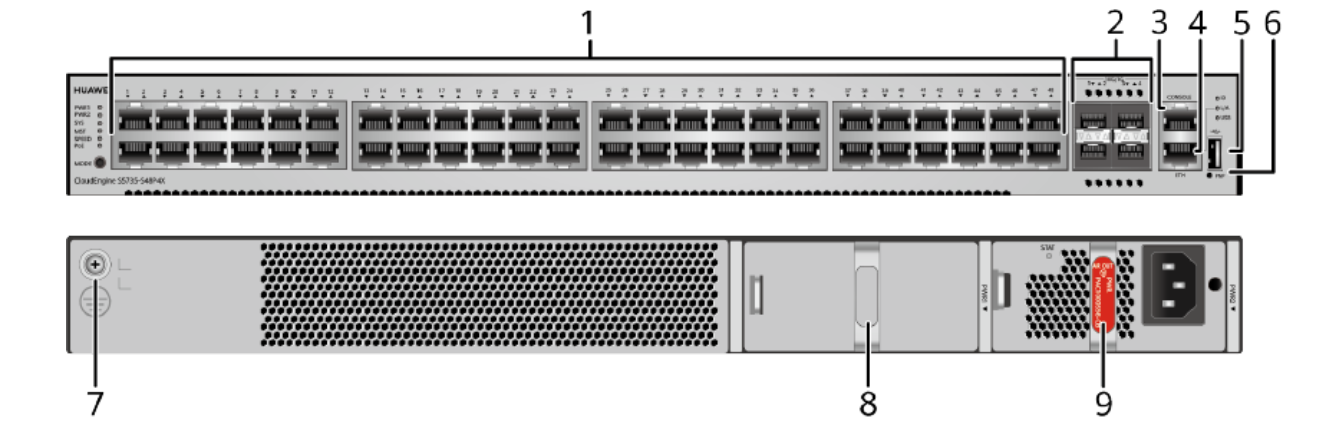

Huawei S5735-S48P4X S5735-S switch with 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, PoE+
HUA WEI CloudEngine S5735-S Series Switches
S5700 series switch is a strong three-layer Gigabit Ethernet switch product launched by brand H, It has large capacity and high density Gigabit ports, supports up to 8 10Gigabit interfaces, realizes the highest port density and flexible port expansion capability of 1U devices in the industry, and fully meets various application scenarios such as campus network access,convergence, IDC Gigabit access and Gigabit to desktop for enterprise users.
S5735-S is a series of standard gigabit access switches that provide 24–48 flexible all-GE downlink ports and four fixed 10 GE uplink ports.
S5735-S switches are designed for scenarios such as enterprise campus network access and aggregation, as well as data center access. Built on next-generation, high- performance hardware and with the Versatile Routing Platform (VRP), S5735-S switches boast advanced features, such as enhanced Layer 3 functionality, simplified O&M, flexible Ethernet networking, and mature IPv6 capabilities.
| Product Model | CloudEngine S5735-S24T4X | CloudEngine S5735-S24P4X | CloudEngine S5735-S32ST4X | CloudEngine S5735-S48T4X | CloudEngine S5735-S48P4X | CloudEngine S5735-S48S4X |
| Forwarding Performance | 96 Mpps | 96 Mpps | 108 Mpps | 132 Mpps | 132 Mpps | 132 Mpps |
| Switching Capacity2 | 128 Gbps/336 Gbps | 128 Gbps/336 Gbps | 144 Gbps/432 Gbps | 176 Gbps/432 Gbps | 176 Gbps/432 Gbps | 176 Gbps/432 Gbps |
| Fixed Ports | 24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 48 x GE SFP ports, 4 x 10 GE SFP+ ports |
| PoE+ | Not supported | Supported | Not supported | Not supported | Supported | Not supported |
| MAC Features | IEEE 802.1d compliance | |||||
| MAC address auto-learning and aging | ||||||
| Static, dynamic, and black hole MAC address entries | ||||||
| Packet filtering based on source MAC addresses | ||||||
| VLAN Features | 4094 VLANs | |||||
| Guest VLAN, Voice VLAN | ||||||
| GVRP | ||||||
| MUX VLAN | ||||||
| VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports | ||||||
| 1:1 and N:1 VLAN mapping | ||||||
| IP Routing | Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+ | |||||
| Super Virtual Fabric (SVF) | Plug-and-play SVF clients | |||||
| Automatic software package and patch loading to SVF clients | ||||||
| One-click and automatic delivery of service configurations | ||||||
| Independent SVF client operation | ||||||
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) | |||||
| LNP (similar to DTP) | ||||||
| VCMP (similar to VTP) | ||||||
