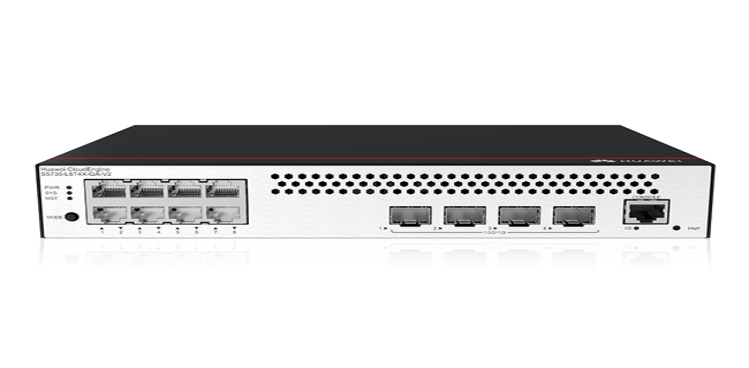

Huawei S5735-L8T4X-QA-V2 (8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power, Fanless)
CloudEngine S5735-L-Q-V2 Series Switches
Based on the next-generation high-performance hardware and Huawei's unified software platform, the CloudEngine S5735-L-Q-V2 series switches feature flexible Ethernet networking, various security control methods, and easy O&M. These switches support multiple Layer 3 routing protocols, provide higher performance, and offer more service processing capabilities.
The whole series of CloudEngine S5735-L-Q-V2 switches are noise-free and energy-saving thanks to their fanless design, making them ideal for various industries, such as healthcare, retail, mining, and Internet.
| Product Model | CloudEngine S5735-L8T4X-QA-V2 | CloudEngine S5735-L8P4X-QA-V2 | CloudEngine S5735-L14P2S-QA-V2 | CloudEngine S5735-L14P2S-TQA-V2 |
| Forwarding Performance | 72Mpps | 72Mpps | 24Mpps | 24Mpps |
| Switching Capacity | 96Gbps/520Gbps* | 96Gbps/520Gbps* | 32Gbps/520Gbps* | 32Gbps/520Gbps* |
| Fixed Ports | 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 14 x 10/100/1000Base-T ports(PoE+), 2 x GE SFP ports | 14 x 10/100/1000Base-T ports(PoE+), 2 x GE SFP ports |
| PoE | Not supported | Supported | Supported | Supported |
| MAC Features | MAC address auto-learning and aging | |||
| Static, dynamic, and blackhole MAC address entries | ||||
| Packet filtering based on source MAC addresses | ||||
| Interface-based MAC address learning limiting | ||||
| VLAN Features | 4094 VLANs | |||
| Voice VLAN | ||||
| MUX VLAN | ||||
| VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports | ||||
| IP Routing | Static route, RIPv1/v2, RIPng, OSPF, OSPFv3 | |||
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) | |||
| LNP (similar to DTP) | ||||
