Huawei S5735-L8T4X-A1 (8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power)

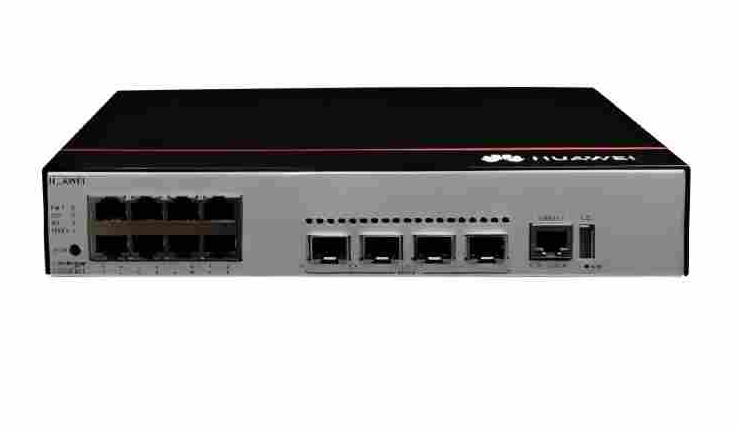

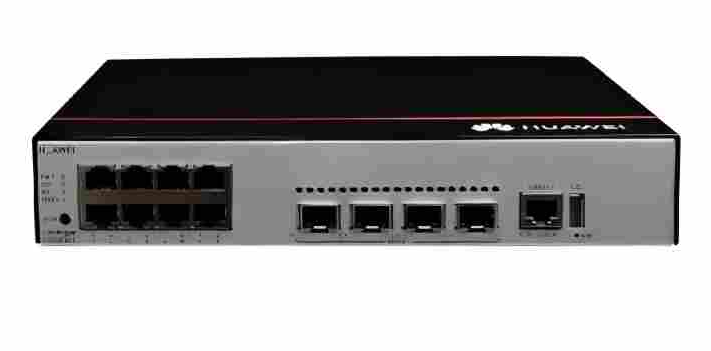

Huawei S5735-L8T4X-A1 Switch is simplified gigabit Ethernet switch with 8 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ port AC power supply. The item is ideal for scenarios such as enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and the Huawei Versatile Routing Platform (VRP), Huawei S5735-L8T4X-A1 supports intelligent stack (iStack). This technology combines multiple switches into a logical switch. Member switches in a stack implement redundancy backup to improve device reliability and use inter-device link aggregation to improve link reliability.
| Item | Details |
| Description | S5735-L8T4X-A1 (8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power) |
| Part Number | 98011282 |
| Model | S5735-L8T4X-A1 |
| First supported version | V200R020C10 |
| Port | 8*10/100/1000BASE-T ports, 4*10GE SFP+ ports |
| Power Module | Built-in |
| PoE+ | Not supported |
| Typical power consumption [W] | 21.1 W |
| Typical heat dissipation [BTU/hour] | 72 BTU/hour |
| Maximum power consumption [W] | 26.3 W |
| Memory | 512 MB |
| Flash memory | 512 MB |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Dimensions without packaging (H x W x D) | 43.6 mm x 250.0 mm x 180.0 mm |
| Dimensions with packaging (H x W x D) | 90.0 mm x 370.0 mm x 380.0 mm |
| Chassis height [U] | 1 U |
| Weight without packaging | 1.44 kg |
| Weight with packaging | 2.08 kg |
