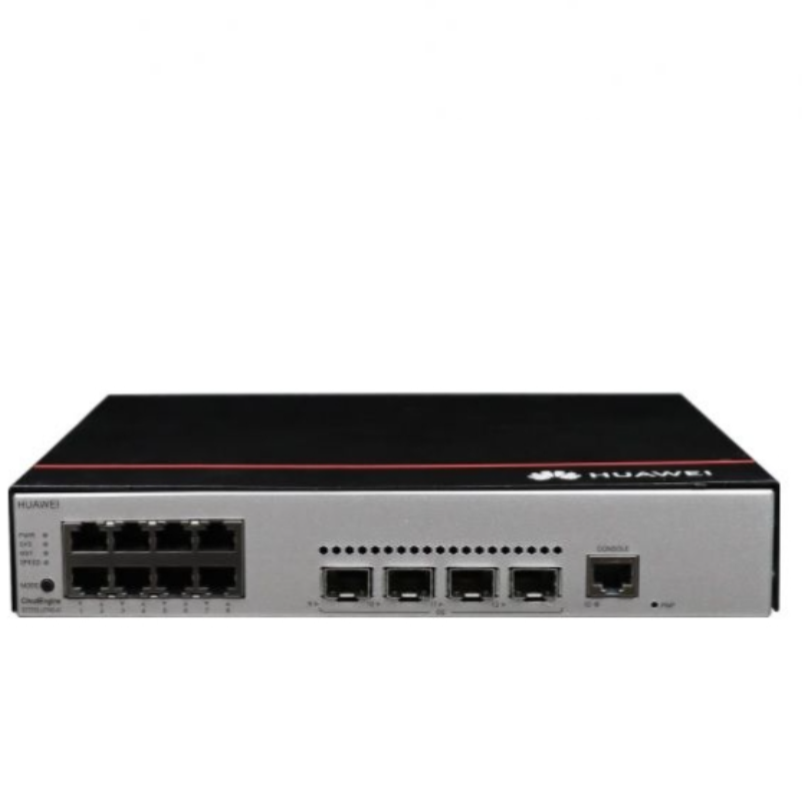

Huawei S5735-L8P4X-A1 (8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE+, AC power)
HUAWEI S5735-L8P4X-A1 switch product overview
Built on next-generation, high-performance hardware and powered by Huawei's Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols- providing higher performance and more powerful service processing capabilities for networks.
| Item | Details |
| Description | S5735-L8P4X-A1 (8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE+, AC power) |
| Part Number | 98011291 |
| Model | S5735-L8P4X-A1 |
| First supported version | V200R020C10 |
| Port | 8*10/100/1000BASE-T ports, 4*10GE SFP+ ports |
| Power Module | Built-in |
| PoE+ | supported |
| Typical power consumption [W] | 28.7 W |
| Typical heat dissipation [BTU/hour] | 97.93 BTU/hour |
| Maximum power consumption [W] | Not providing the PoE function: 39.1 W |
| 100% PoE loads: 163.1 W (PoE: 124 W) | |
| Flash memory | 512 MB |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Dimensions without packaging (H x W x D) | 43.6 mm x 300.0 mm x 220.0 mm |
| Dimensions with packaging (H x W x D) | 110.0 mm x 435.0 mm x 360.0 mm |
| Chassis height [U] | 1 U |
| Weight without packaging | 2.25 kg |
| Weight with packaging | 3.17 kg |
