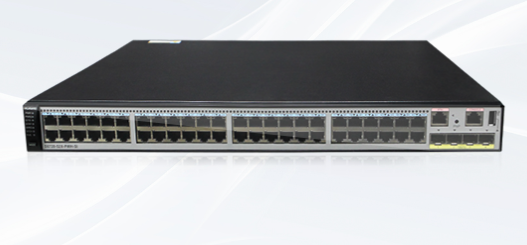

Huawei S6720-32X-SI-32S Bundle (32*10 Gig SFP+, with 150W AC power supply)
S6720-SI Series Multi GE Switches
Huawei S6720-SI series switches are Huawei-developed next-generation multigigabit 10GE fixed switches. S6720-SI can provide high-speed wireless access, and access for 10GE servers in data centers or function as access/aggregation switches on a campus network. S6720-SI provides a wide variety of services, comprehensive security policies, and various QoS features to help customers build scalable, manageable, reliable, and secure campus and data center networks.
| Parameters | S6720-26Q-SI-24S-AC | S6720-32X-SI-32S-AC | S6720-32C-SI-AC | S6720-32C-PWH-SI-AC | S6720-56C-PWH-SI-AC | S6720-52X-PWH-SI |
| S6720S-26Q-SI-24S-AC | S6720-32C-SI-DC | S6720-32C-PWH-SI | S6720-56C-PWH-SI | |||
| Switching Capacity | 2.56 Tbit/s | 2.56 Tbit/s | 2.56 Tbit/s | 2.56 Tbit/s | 2.56 Tbit/s | 2.56 Tbit/s |
| Forwarding Performance | 240 mpps | 240 mpps | 240 mpps | 240 mpps | 240 mpps | 480 mpps |
| Fixed Ports | 24 x 10 GE SFP+ | 32 x 10 GE SFP+ | 24 x multi-gigabit Base-T Ethernet ports | 24 x multi-gigabit Base-T Ethernet ports | 32 x 10/100/1,000 Base-T Ethernet ports | 48 x multi-gigabit Base-T Ethernet ports |
| 2 x 40 GE QSFP+ | 4 x 10 GE SFP+ | 4 x 10 GE SFP+ | 16 x multi-gigabit Base-T Ethernet ports | 4 x 10 GE SFP+ | ||
| 4 x 10 GE SFP+ | ||||||
| Extended Slots | Not supported | Not supported | One extended slot | One extended slot | One extended slot | Not supported |
| MAC Address Table | 32K | |||||
| MAC address learning and aging | ||||||
| Static, dynamic, and blackhole MAC address entries | ||||||
| Packet filtering based on source MAC addresses | ||||||
| VLAN Features | 4094 VLANs | |||||
| Guest VLAN and voice VLAN | ||||||
| VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports | ||||||
| VLAN mapping | ||||||
| Super VLAN | ||||||
| Basic QinQ and selective QinQ | ||||||
| IP Routing | Static routing, RIPv1, RIPv2, ECMP, URPF, OSPF, IS-IS, and BGP | |||||
| VRRP | ||||||
| Policy-based routing | ||||||
| Routing policies | ||||||
| RIPng | ||||||
| OSPFv3 | ||||||
| BGP4+ | ||||||
| ISISv6 | ||||||
| Interoperability | VLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST) | |||||
| Link-type Negotiation Protocol (LNP) (similar to DTP) | ||||||
| VLAN Central Management Protocol (VCMP) (similar to VTP) | ||||||
