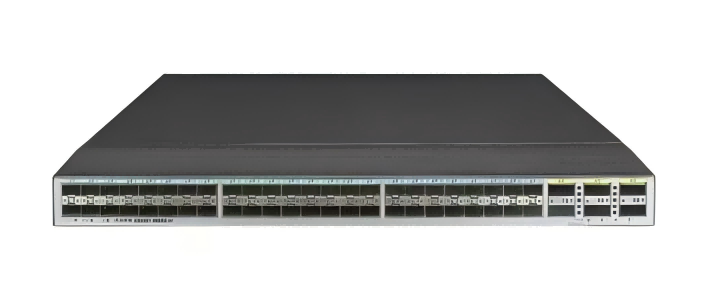

Huawei S6720S-S36S16X-A (36*Gigabit SFP ports, 16*10-Gigabit SFP ports, AC power supply, front maintenance)
Huawei S6720S-S36S16X-A is a Standard 10 Gigabit Ethernet Switch with 36*Gigabit SFP ports, 16*10-Gigabit SFP ports, and built-in AC power supply (front) launched for the campus network market. It supports a wide range of service features, comprehensive security control strategies, and rich QoS characteristics. S6720S-S series adopt a front power supply design, with a total depth of only 220mm. This design allows for high-density gigabit/10-gigabit optical access interfaces to be widely deployed in aggregation or core layers of campus networks, as well as in small data center access scenarios. Moreover, this series enhances the traditional STP/RSTP/MSTP spanning tree, supporting multi-process MSTP, which significantly increases the number of access ring instances. It also supports enhanced Ethernet technologies such as Smartlink and RRPP, allowing for millisecond-level link protection and switching, ensuring high reliability of network quality. Additionally, multi-instance functionality is provided for both Smartlink and RRPP, enabling link load sharing and further improving link bandwidth utilization.
| Item | Details |
| Description | S6720S-S36S16X-A (36*Gigabit SFP ports, 16*10-Gigabit SFP ports, AC power supply, front maintenance) |
| Part Number | 98012096 |
| Model | S6720S-S36S16X-A |
| Chassis Height [U] | 1U |
| Chassis Material | Metal |
| Weight (excluding packaging) [kg] | 3.6kg |
| Weight (including packaging) [kg] | 4.7kg |
| Typical Power Consumption [W] | 78W |
| Typical Heat Dissipation [BTU/hour] | 266.14BTU/hour |
| Maximum Power Consumption [W] | 99W |
| Maximum Heat Dissipation [BTU/hour] | 337.8BTU/hour |
| Static Power Consumption [W] | 39W |
| MTBF [years] | 41.97years |
| Availability | > 0.99999 |
| Ambient Noise (Sound Power) [dB(A)] | 56.8dB(A) |
| Ambient Noise (Sound Pressure) [dB(A)] | 44.8dB(A) |
| Number of Card Slots | 0 |
| Number of Power Slots | 0 |
| Number of Fan Modules | 3 |
| Power Redundancy | No support |
| Long-term Operating Ambient Temperature [°C] | ;-5°C～+45°C（0m～1800m Elevation) |
| Short-term Operating Ambient Temperature [°C] | -5°C～+50°C（0m～1800m Elevation) |
| Operating Ambient Temperature Variation Limit [°C] | From 1800m to 5000m, the maximum temperature specification decreases by 1°C for every 220m increase in altitude. |
| Storage Temperature [°C] | -40°C～+70°C |
| Long-term Operating Ambient Relative Humidity [RH] | 5%RH～95%RH，Non-condensing |
| Long-term Operating Altitude [m] | 0m～5000m |
| Storage Altitude [m] | 0m～5000m |
| Power Supply Mode | Built-in AC |
| Rated Input Voltage [V] | Input communication: 100V AC ~ 130V AC, 200V AC ~ 240V AC; 50/60HzHigh voltage DC input: 240V DC |
| Input Voltage Range [V] | AC input: 90V AC to 290V AC; 45Hz to 65Hz High voltage DC input: 190V DC to 290V DC |
| Maximum Input Current [A] | 6A |
| Memory | 2GB |
| Flash | Physical space is 1GB, and the actual available space can be checked using the display version command. |
| Console Interface Type | RJ45 |
| Eth Management Network Port Type | RJ45 |
| USB Port | No support |
| Real-Time Clock (RTC) | Support |
| RPS Input | No support |
| Service Port Lightning Protection [kV] | - |
| Power Port Lightning Protection [kV] | Differential mode ±6kV, common mode ±6kV |
| Three-proofing (Dustproof/ Waterproof) | IP20 |
| Fan Type | Built-in Fan |
| Cooling Method | Air cooling and intelligent speed regulation |
| Airflow Direction | Left intake air, right exhaust air |
| PoE Function | No support |
