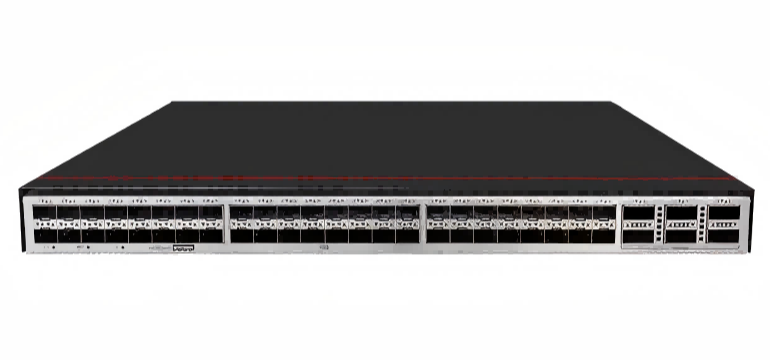

Huawei S6720S-S52X-A (52 Gigabit SFP +, AC power supply, front maintenance)
S6720S-S52X-A is a high-performance switch designed for advanced networking applications. It features 52 Gigabit SFP+ ports and an AC power supply, ensuring reliable and efficient operation. The front maintenance design makes it easy to access and maintain the switch in your network infrastructure.
| Item | Details |
| Description | S6720S-S52X-A (52 Gigabit SFP +, AC power supply, front maintenance) |
| Part Number | 98011049 |
| Model | S6720S-S52X-A (52 Gigabit SFP +, AC power supply, front maintenance) |
| Port | 52 Gigabit SFP + |
| Chassis Height | 1U |
| Depth [mm] | 220.0mm |
| Weight (including packing materials) [kg] | 4.7 |
| Weight (excluding packing materials) [kg] | 3.6 |
| Typical Power Consumption [W] | 87 |
| Maximum Power Consumption [W] | 111 |
| Typical thermal dissipation [BTU/hour] | 296.85 |
| Heat dissipation mode | Air-cooled cooling, intelligent speed regulation |
| Maximum cooling value [BTU/hour] | 378.74 |
| Power supply system | AC built-in |
| Input voltage range [V] | -AC input: 90V AC ~ 290V AC; 45Hz ~ 65Hz |
| -High voltage DC input: 190V DC to 290V DC | |
| Rated input voltage [V] | -AC input: 100V AC ~ 130V AC, 200V AC ~ 240V AC; 50/60Hz |
| -High voltage DC input: 240V DC | |
| Memory | 2GB |
| Flash | The physical space is 1GB and the actual free space can be viewed using the display version |
| command | |
| Power supply redundancy | Not supported |
| Fan type | Built-in fan |
| Number of fan modules | 3 |
| Noise at room temperature (sound power) [dB (A)] | 56.8 |
| Noise at room temperature (sound pressure) [dB (A)] | 44.8 |
| Air flow direction | Left front air inlet, right air outlet |
| Long-term operating ambient temperature [° C] | -5 ° C ~ + 45 ° C (0m ~ 1800m altitude) |
| Storage temperature [° C] | -40°C~+70°C |
| Short-term operating ambient temperature [° C] | -5 ° C ~ + 50 ° C (0m ~ 1800m altitude) |
| Operating ambient temperature variation limit [° C] | From 1800m to 5000m, the maximum temperature specification is reduced by 1 ° C for |
| every 220m increase in altitude.The device supports short-term operation beyond the | |
| normal operating temperature range, provided that the following conditions are met: | |
| -Working temperature exceeds 45 degrees for a maximum of 96 consecutive hours in a | |
| year -The total time that the working temperature exceeds 45 degrees in a year is not | |
| more than 360 hours. -No more than 15 times in a year when the working temperature | |
| exceeds 45 degrees If one of the above three conditions is exceeded, it belongs to | |
| over-specification use, which may cause damage to the equipment or unknown situations. | |
| The device does not support starting at ambient temperatures below 0 ° C. The maximum | |
| distance at which the optical module is used for short-term operation shall not exceed 10 | |
| km. | |
| Relative humidity of long-term working environment [RH] | 5% RH ~ 95% RH, non-condensing |
| Long-term working altitude [m] | 0m~5000m |
| Storage Altitude [m] | 0m~5000m |
| MTBF [year] | 41.97 |
| MTTR [hours] | 2 |
| Availability | > 0.99999 |
| Maximum number of physical ports of the whole machine | 52 |
| Lightning protection of power port | Differential ± 6kV, Common ± 6kV |
| RPS input | Not supported |
| PoE functionality | Not supported |
