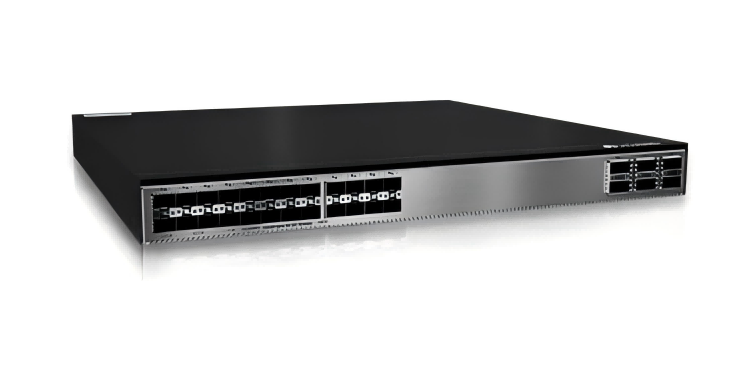

S6730-S24X6Q (24*10GE SFP+ ports, 6*40GE QSFP ports, without power module)
CloudEngine S6730-S series full-featured 10 GE switches are Huawei's new generation fixed switches ,to provide 10 GE downlink ports as well as 40 GE uplink ports. CloudEngine S6730-S can be used to provide high-speed access for 10 Gbit/s access to high-density servers or function as a core/aggregation switch on a campus network to provide 40 Gbit/s rate. In addition, CloudEngine S6730-S provides a wide variety of services, comprehensive security policies, and various QoS features to help customers build scalable, manageable,reliable, and secure campus and data center networks.
| Item | Details |
| Description | S6730-S24X6Q (24*10GE SFP+ ports, 6*40GE QSFP ports, without power module) |
| Part Number | 02353AJW/02353AJW-001/02353AJW-003/02353AJW-004 |
| Model | S6730-S24X6Q |
| Port | 24*10GE SFP+ ports, 6*40GE QSFP ports |
| Forwarding Performance | 480Mpps |
| Switching Capacity | 960Gbps/2.4Tbps |
| Fixed ports | 24 x 10 Gig SFP+, 6 x 40 Gig QSFP+ |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Chassis height(U) | 1U |
| Input voltage | AC Power |
| (Power supply needs to be ordered separately.) | Rated AC voltage: 100V to 240V AC; 50/60 Hz |
| Max. AC voltage: 90V to 290V AC; 45-65 Hz | |
| DC Power | |
| Rated DC voltage: –48V～–60V | |
| Max DC voltage: -38.4V DC～-72V DC | |
| Input current | AC 600WMax 8A |
| (Power supply needs to be ordered separately.) | DC 1000WMax 30A |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Flash memory | 2 GB in total. To view the available flash memory size, run the display version command. |
| Memory | 4 GB |
| Power supply mode | Pluggable power supply |
| PoE | Not supported |
