Huawei CE5855-48T4S2Q-EI Part#02350GTR

Description

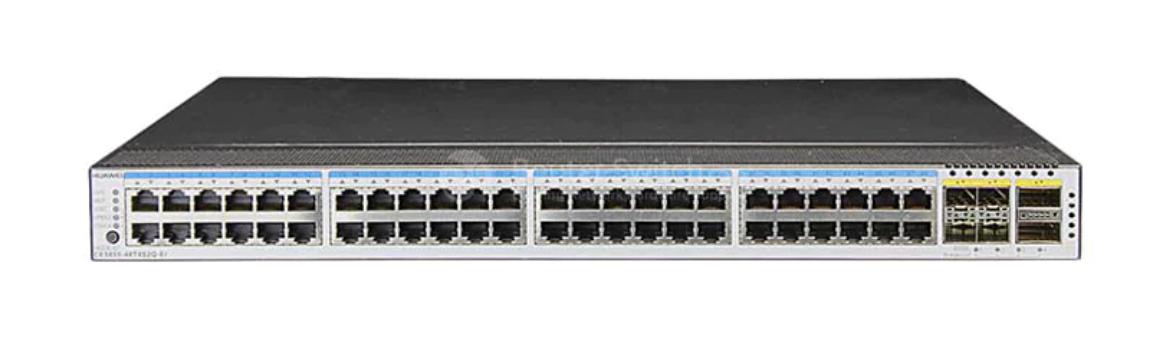

Huawei CE5855-48T4S2Q-EI Switch(48-Port GE RJ45,4-Port 10G SFP+,2-Port 40G QSFP+,Without Fan and Power Module)

Detailed description

Huawei CE5855-48T4S2Q-EI-B provides 48 * GE line-speed ports plus 4 * 10 GE and 2 * 40G upstream ports for stacking up to 16 switches. 10 GE and 40G ports enable creation of a non-blocking stack that can extend across geographical distances between data centers.

Using the Huawei VRP8 software platform, CE5800 switches support Transparent Interconnection of Lots of Links (TRILL) and have a high stacking capability (up to 16-member switches in a stack system). In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE5800 switches can work with CE12800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers.

CE5800 switches provide high-density GE access to help enterprises build a scalable data center network platform for cloud computing. They can also be used as aggregation or access switches for enterprise campus networks.

Item	Details
Description	CloudEngine 5855-48T4S2Q-EI Switch(48-Port GE RJ45,4-Port 10G SFP+,2-Port 40G QSFP+,Without Fan and Power Module)
Part Number	02350GTR
Model	CE5855-48T4S2Q-EI
Port	48-Port GE RJ45,4-Port 10G SFP+,2-Port 40G QSFP+
Switching Capacity	336 Gbit/s
Forwarding Performance	252 Mpps
Buffer	8 MB
Reliability	LACP
Reliability	BFD for BGP, IS-IS, OSPF, and static route
O&M	Netstream
	sFlow
	ERSPAN
	Telemetry
Data Center Features	M-LAG
Data Center Features	iStack
Maximum Power Consumption	103 W
Power Supply	AC: 150 W
Power Supply	DC: 350 W, –48 V
Operating Voltage	AC: 90–264 V
Operating Voltage	DC: –38.4 V to –72 V
